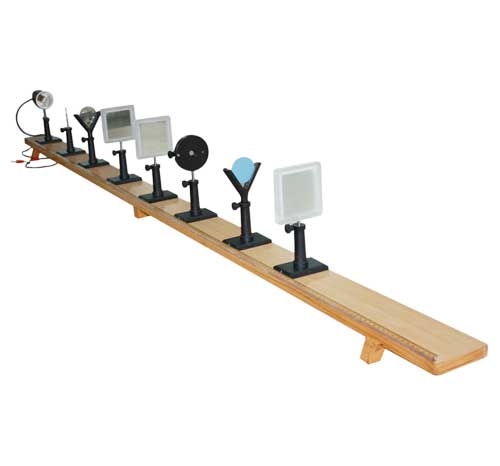

Our optical bench comprises of a wooden baseboard measuring 1.1 m x 115 mm, with a 1m scale divided in millimetres and figured every centimetre.
6 sliding moulded bases measuring 100 x 50 mm, each with index line, brass pillar and locking screw are also provided.
Our optical bench offers excellent support and alignment of the optical elements, and provides for accurate demonstrations of basic optics principles in physics laboratories.
The following accessories are included:
- 1 candle holder.
- 1 white metal object screen 75mm in diameter with gauze.
- 1 holder for lenses, which comprises of a wooden upright with a 'V' shaped slot to hold lenses up to 75 mm in diameter.
- 1 white metal receiving screen, 100 x 75mm with a slot for squared paper screen on the reverse.
- 1 Plane mirror in a metal frame 150 x 100 mm.
- 1 object needle mounted vertically in a short metal rod.
All the accessories are provided with 6 mm mounting rods. The lengths of the rods and the sizes of the components have been designed to provide a common optical centre.
Other sizes and other types of optical benches are available on request.
Lamp house and projection lamp are also available.
Additional lens holders can be bought separately.
